Bosch
German-engineered intrusion panels and detectors
Bosch Security alarm platforms are known for reliability, detector quality, and commercial scalability. We install Solution / B Series panels, Blue Line detectors, communicators, and accessories for Hong Kong homes and businesses.
B6512
Entry B Series panel for small to mid-size intrusion systems.
Best for: Small offices / homes
- Platform
- Bosch B Series
- Onboard points
- 8
- Max points
- 40 (with expanders)
- Areas
- 4
B8512G
Mid-range B Series panel with higher capacity for commercial sites.
Best for: Retail / SME commercial
- Platform
- Bosch B Series
- Onboard points
- 8
- Max points
- 99
- Areas
- 8
B9512G
Flagship B Series panel for large multi-area installations.
Best for: Large commercial / campuses
- Platform
- Bosch B Series
- Onboard points
- 8
- Max points
- 599
- Areas
- 32
ICP-CC408 / Solution 16
Proven Solution-series panel commonly used in Asia Pacific installs.
Best for: Homes / small commercial (APAC)
- Zones
- 8 onboard (expandable by model family)
- Codepads
- LCD / LED codepads
- Outputs
- Programmable outputs
- Communication
- PSTN / IP modules
DX4010V2
USB/serial interface module for panel connectivity and integration.
Best for: Service / integration
- Interface
- USB / serial
- Use
- Programming / automation interface
- Compatibility
- Selected Bosch panels
- Form factor
- Module
B426
Ethernet communicator module for IP alarm reporting.
Best for: IP monitoring paths
- Path
- Ethernet / IP
- Protocol
- Bosch IP reporting
- Compatibility
- B Series / selected panels
- Mounting
- Enclosure module

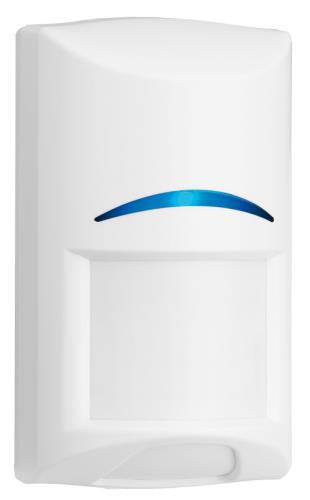

ISC-BPR2-W12 / Blue Line Gen2
Wall PIR with selectable coverage and pet-friendly options.
Best for: Interior rooms / corridors
- Type
- PIR motion
- Coverage
- 12 m class (model dependent)
- Pet immunity
- Selectable models
- Installation
- Wall / corner

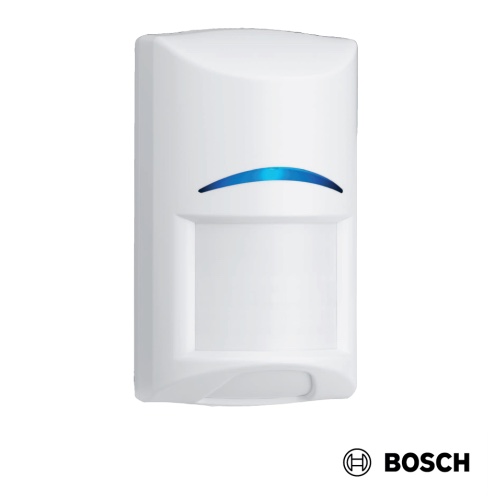

TriTech Motion Detectors
PIR + microwave dual technology for lower false alarms.
Best for: High-traffic / challenging rooms
- Technology
- PIR + microwave
- False alarm resistance
- High
- Coverage options
- Multiple lens patterns
- Immunity
- White light / draft resistant designs

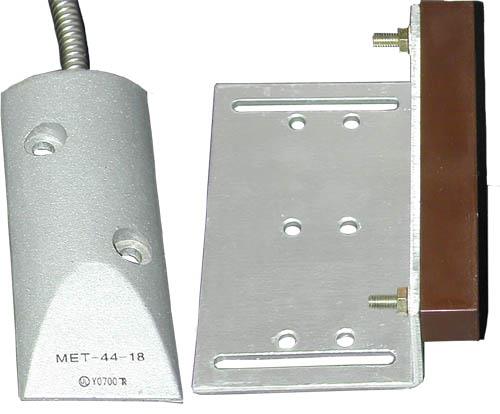

ISN-CMET-4418 Magnetic Contact
Heavy-duty magnetic reed contact for Bosch wired zones on doors, shutters, and gates.
Best for: Metal gates, roller shutters, and fire-exit doors
- Type
- Wired magnetic reed contact
- Gap
- Wide-gap class for metal frames
- Loop
- Closed-circuit / EOL as programmed
- Voltage
- Panel zone voltage

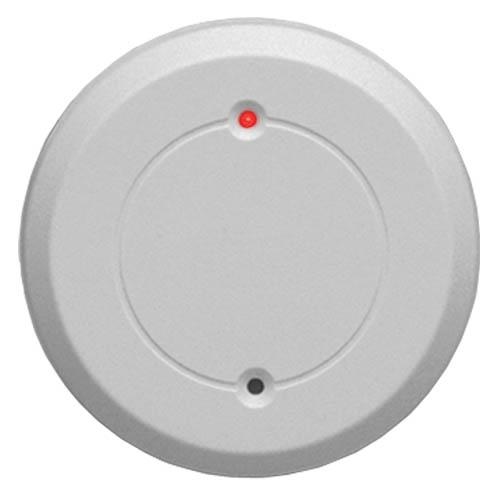

DS1101i Glass Break Detector
Wired acoustic glass-break detector for rooms with large glazed areas.
Best for: Glass shopfronts and office meeting rooms
- Type
- Wired acoustic glass break
- Coverage
- Up to ~7.5 m radius class
- Detection
- Flex / shatter dual-frequency analysis
- Voltage
- 12 VDC nominal

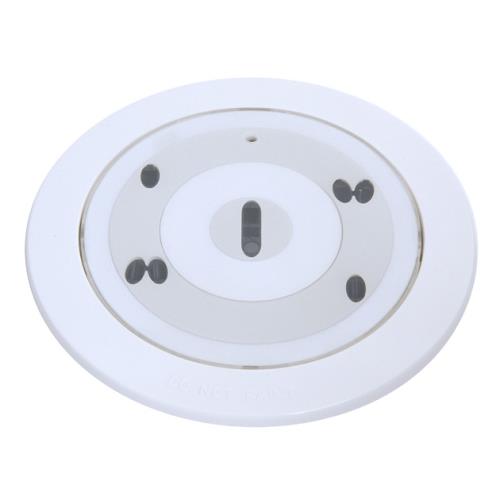

FCP-500 Smoke / Heat Detector
Photoelectric smoke and heat detector for early fire warning on Bosch intrusion or fire zones.
Best for: Offices, back-of-house, and mixed-use floors
- Type
- Photoelectric smoke + heat
- Heat
- Rate-of-rise / fixed temperature class
- Sounder
- Optional base sounder (project dependent)
- Voltage
- 12 / 24 VDC class (base dependent)

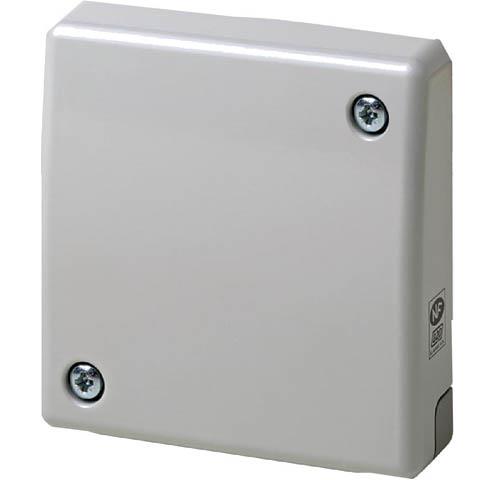

ISN-SM-50 Seismic Detector
Seismic vibration detector for safes, ATM surrounds, and forced-entry on solid structures.
Best for: Safes, strong rooms, and high-value enclosures
- Type
- Seismic / vibration detector
- Sensitivity
- Adjustable attack-pattern processing
- Voltage
- 12 VDC nominal
- Mounting
- Solid surface (safe, vault, masonry)

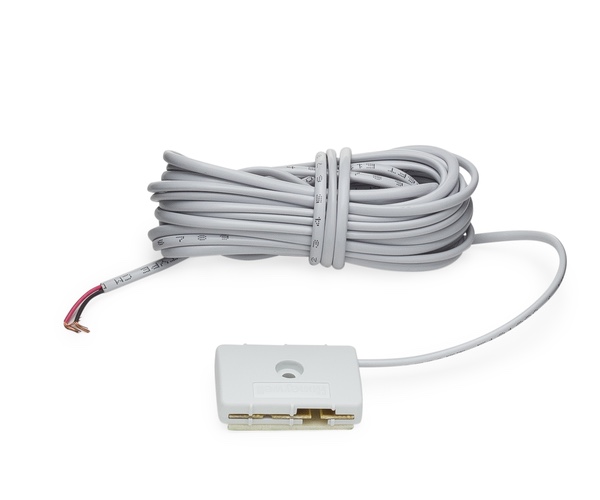

Zone Water / Flood Probe
Wired water probe on a Bosch zone for plant rooms, kitchens, and leak-prone interiors.
Best for: Plant rooms, kitchens, and meter cupboards
- Type
- Wired water / flood probe
- Loop
- NO/NC with EOL on Bosch zone
- Detection
- Conductive water contact at floor level
- Voltage
- Panel zone voltage
B920 / B930 Keypads
SDI2 LCD keypads with clear status and simple user operation.
Best for: B Series systems
- Bus
- SDI2
- Display
- LCD
- Inputs
- Panic / function keys
- Language
- Multi-language support*
Bosch panel comparison
Quick side-by-side view to help choose the right model family for your site.
| Spec | B6512 | B8512G | B9512G | ICP-CC408 |
|---|---|---|---|---|
| Segment | Entry B Series | Mid commercial | Enterprise | Solution / APAC |
| Max points (class) | 40 | 99 | 599 | 8+ expandable |
| Areas | 4 | 8 | 32 | Standard areas |
| Onboard Ethernet | Module | Yes (G) | Yes (G) | Module |
| Best fit | Home/SME | Retail/office | Large site | Legacy/APAC |
