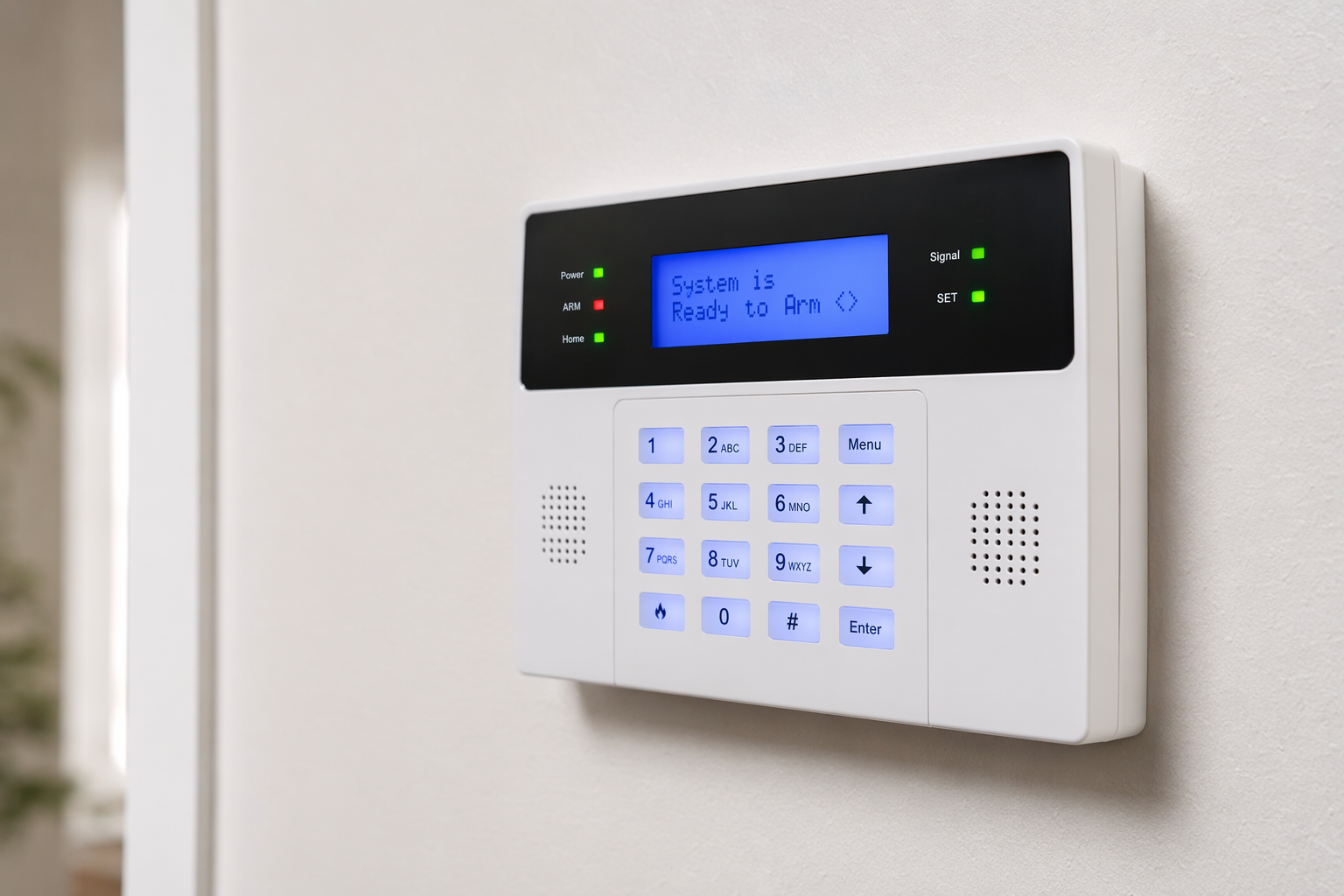

Wired alarm systems
Hardwired Honeywell, Bosch and Texecom Premier Elite alarms for Hong Kong homes and shops. Tamper-proof cabling and UPS backup.
Product list — jump to a model
Open any model for specs, manuals, and Hong Kong installation notes.
Honeywell
Honeywell wired panels & accessories
VISTA-10P
Entry Honeywell hybrid panel for the smallest flats and studios.
- Type
- Hybrid wired / wireless
- Maximum zone capacity
- 22
- Onboard hardwired zones
- 6 (no zone doubling)
- Hardwire expansion (ECP)
- 0

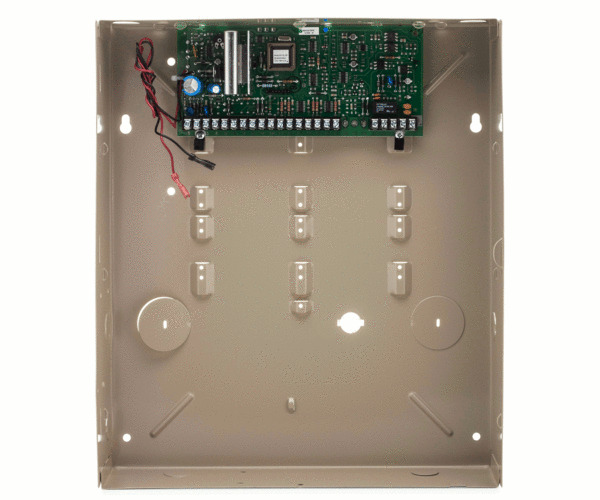

VISTA-15P
Compact hybrid control panel for apartments and small homes.
- Type
- Hybrid wired / wireless
- Maximum zone capacity
- 32
- Onboard hardwired zones
- 6 (no zone doubling)
- Hardwire expansion (ECP)
- Up to 16 zones

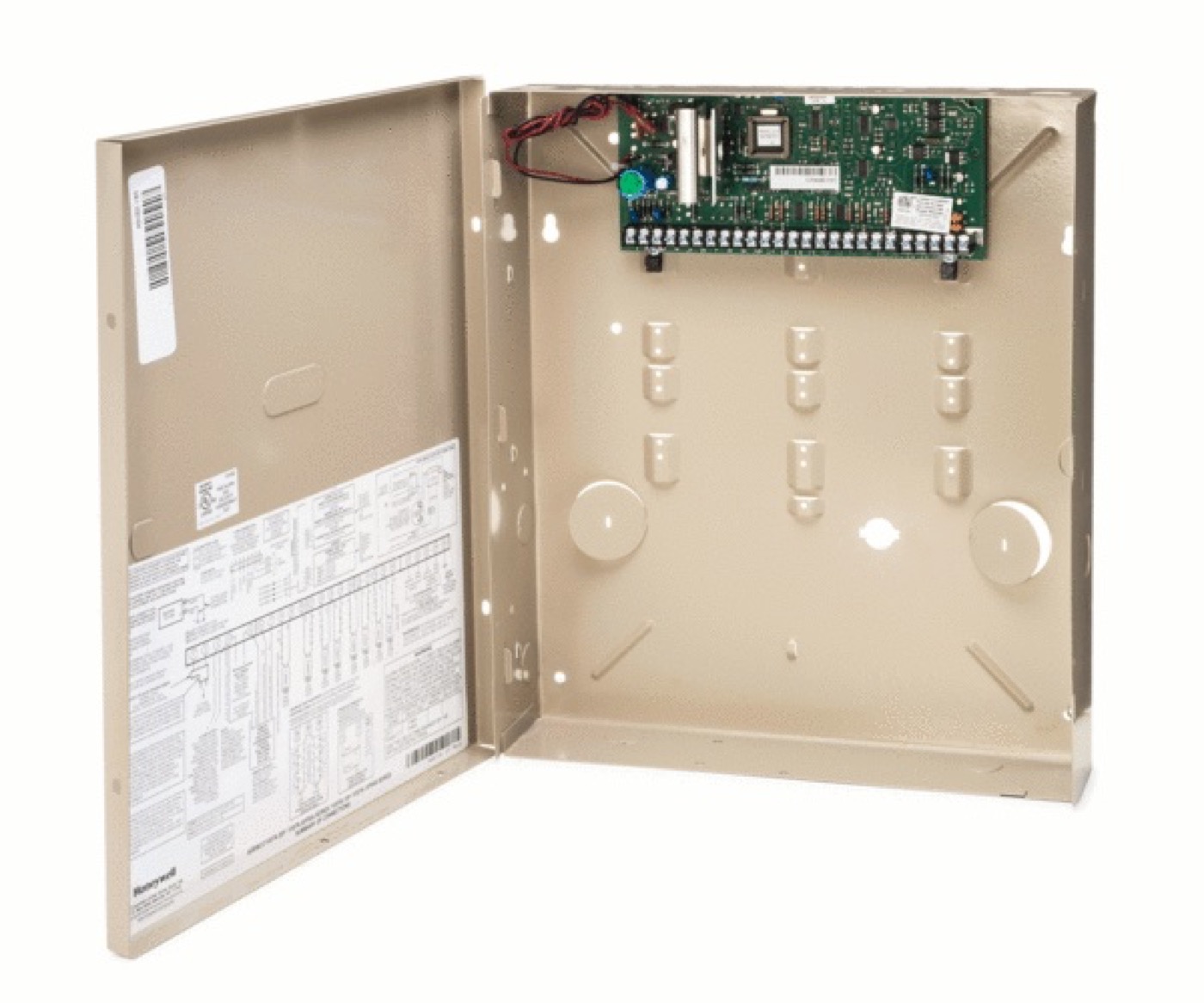

VISTA-20P
Most popular Honeywell hybrid panel for homes and small shops.
- Type
- Hybrid wired / wireless
- Maximum zone capacity
- 48
- Onboard hardwired zones
- 8 (up to 15 with doubling)
- Hardwire expansion (ECP)
- Up to 40 zones

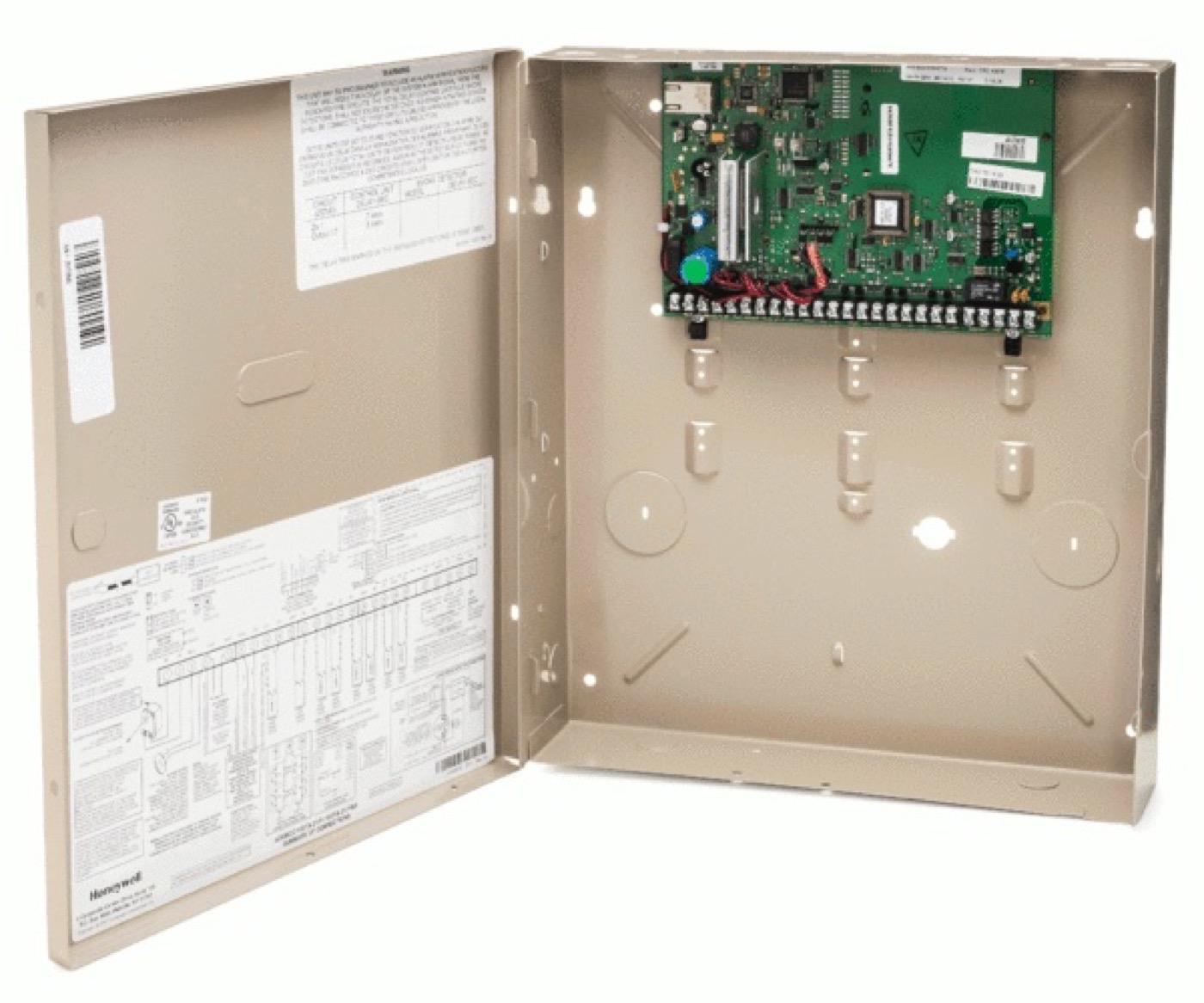

VISTA-21iP
VISTA panel with built-in IP communicator for always-on reporting.
- Type
- Hybrid + onboard IP
- Maximum zone capacity
- 48
- Onboard hardwired zones
- 8 (up to 15 with doubling)
- Hardwire expansion (ECP)
- Up to 40 zones

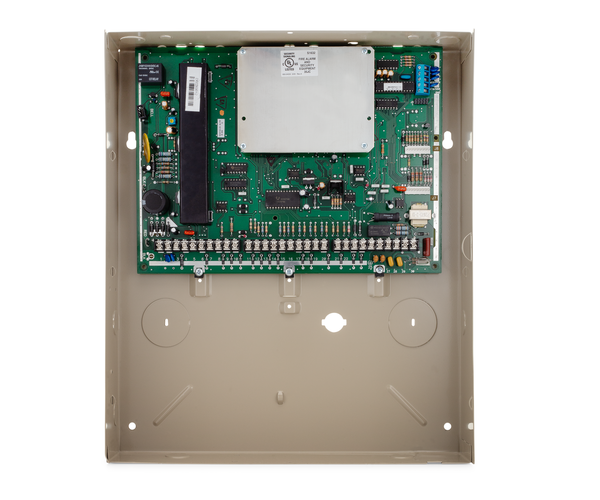

VISTA-128BPT
Commercial-grade panel for larger premises and multi-partition sites.
- Type
- Commercial hybrid
- Zones
- Up to 128
- Partitions
- Up to 8
- User codes
- 150+

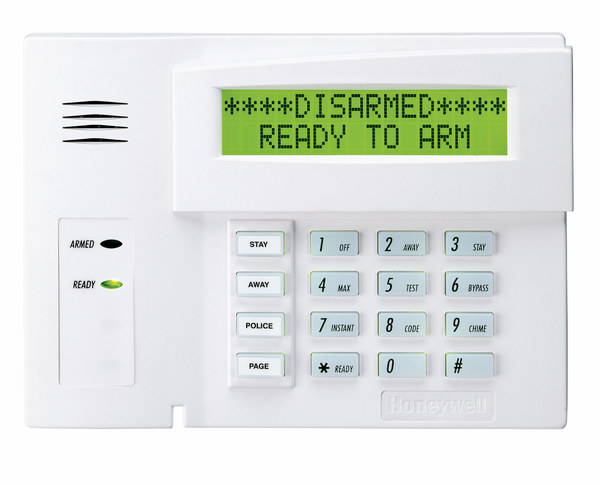

6160 / 6160RF
Alpha LCD keypad; RF model includes built-in wireless receiver.
- Display
- 2-line alpha LCD
- Backlight
- Yes
- RF receiver
- 6160RF only
- Compatibility
- VISTA panels

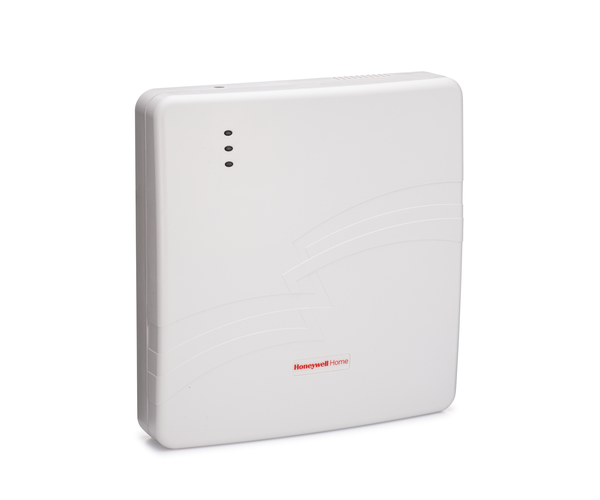

LTE-IV / Dual-Path Communicator
Cellular / dual-path communicator for monitoring-center reporting.
- Primary path
- LTE cellular
- Secondary path
- IP / panel dependent
- Use case
- Alarm reporting + supervision
- Compatibility
- VISTA / ProSeries (model specific)
Bosch
Bosch wired panels & accessories
B6512
Entry B Series panel for small to mid-size intrusion systems.
- Platform
- Bosch B Series
- Onboard points
- 8
- Max points
- 40 (with expanders)
- Areas
- 4
B8512G
Mid-range B Series panel with higher capacity for commercial sites.
- Platform
- Bosch B Series
- Onboard points
- 8
- Max points
- 99
- Areas
- 8

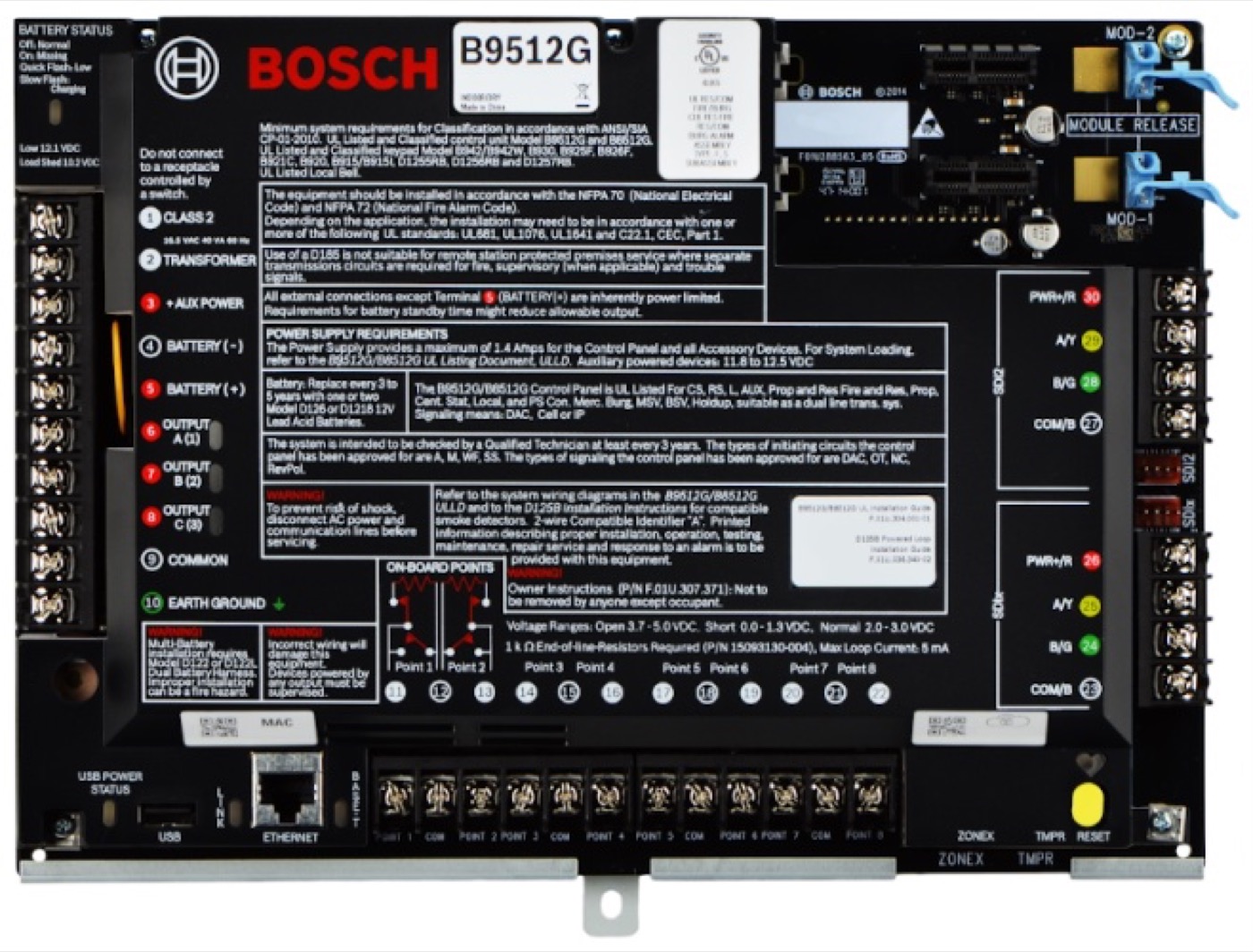

B9512G
Flagship B Series panel for large multi-area installations.
- Platform
- Bosch B Series
- Onboard points
- 8
- Max points
- 599
- Areas
- 32

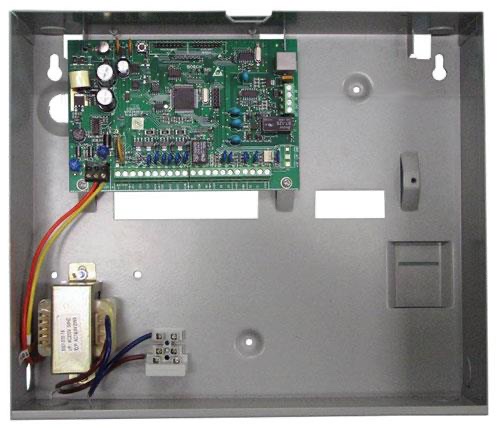

ICP-CC408 / Solution 16
Proven Solution-series panel commonly used in Asia Pacific installs.
- Zones
- 8 onboard (expandable by model family)
- Codepads
- LCD / LED codepads
- Outputs
- Programmable outputs
- Communication
- PSTN / IP modules

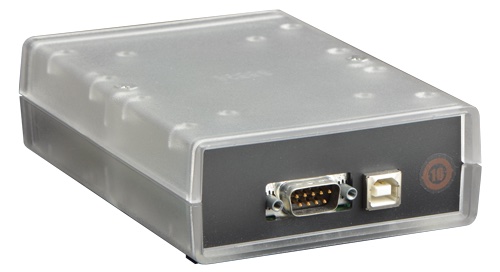

DX4010V2
USB/serial interface module for panel connectivity and integration.
- Interface
- USB / serial
- Use
- Programming / automation interface
- Compatibility
- Selected Bosch panels
- Form factor
- Module
B426
Ethernet communicator module for IP alarm reporting.
- Path
- Ethernet / IP
- Protocol
- Bosch IP reporting
- Compatibility
- B Series / selected panels
- Mounting
- Enclosure module

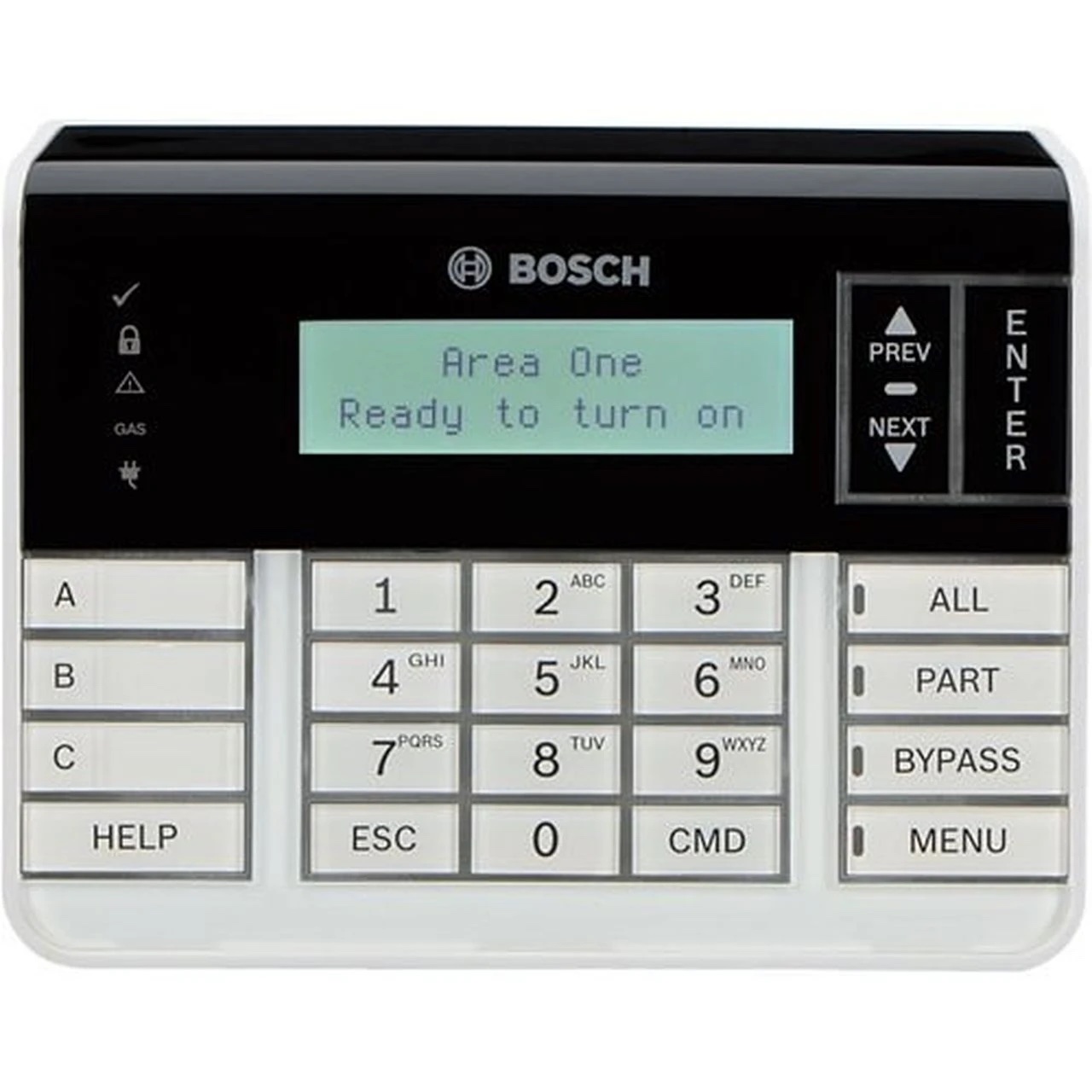

B920 / B930 Keypads
SDI2 LCD keypads with clear status and simple user operation.
- Bus
- SDI2
- Display
- LCD
- Inputs
- Panic / function keys
- Language
- Multi-language support*
Texecom
Texecom wired panels & accessories

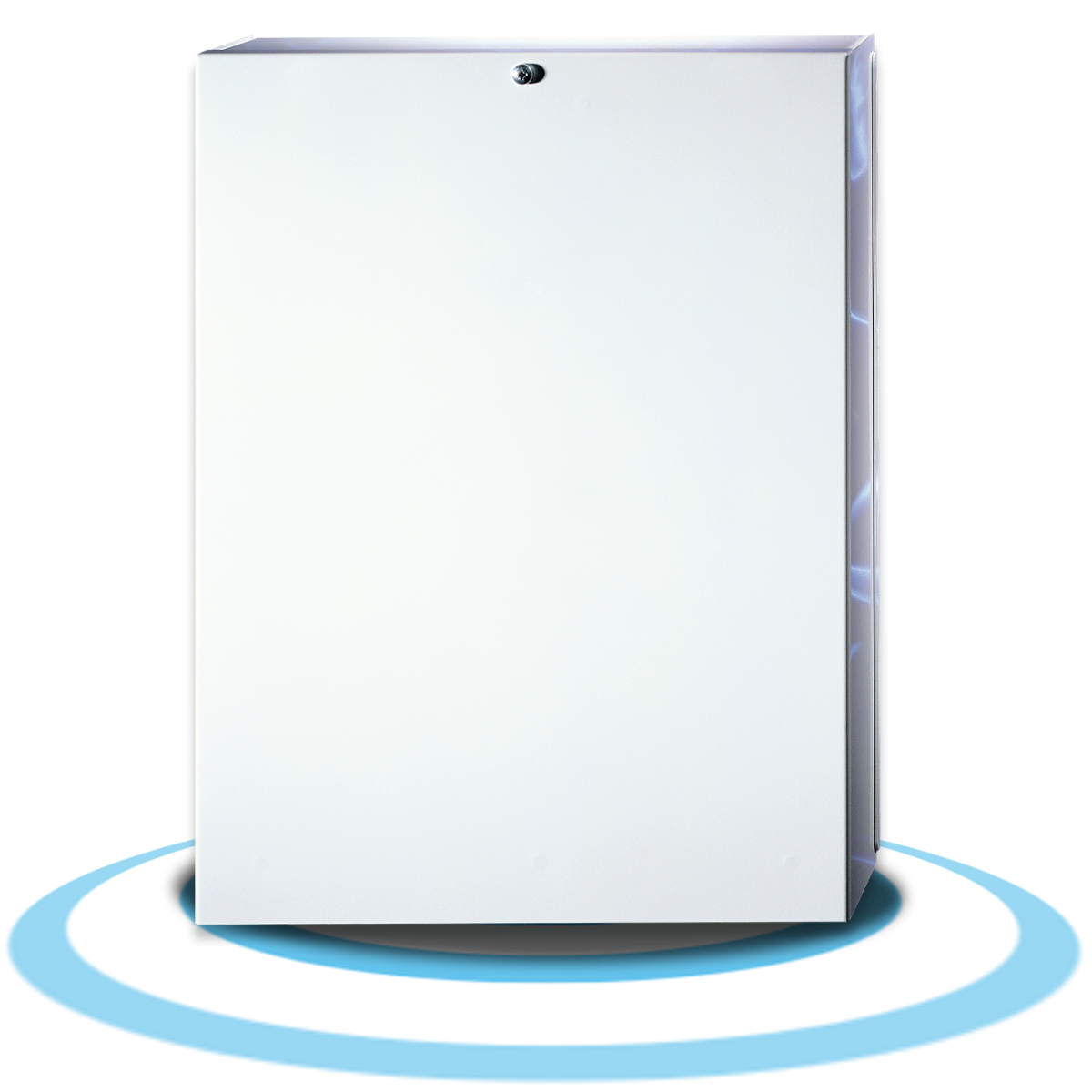

Premier Elite 24
Compact 8-zone panel expandable to 24 zones for apartments and small shops.
- Onboard zones
- 8
- Max zones
- 24
- Areas
- 2
- User codes
- 25
Premier Elite 48
Most common Premier Elite hybrid panel for Hong Kong homes and small retail.
- Onboard zones
- 8
- Max zones
- 48
- Areas
- 4
- User codes
- 50
Premier Elite 88
Mid-size commercial panel with 8 areas and 100 user codes.
- Onboard zones
- 8
- Max zones
- 88
- Areas
- 8
- User codes
- 100
Premier Elite 168
Large Grade 3 panel for multi-area commercial and industrial sites.
- Onboard zones
- 8
- Max zones
- 168
- Areas
- 16
- User codes
- 200

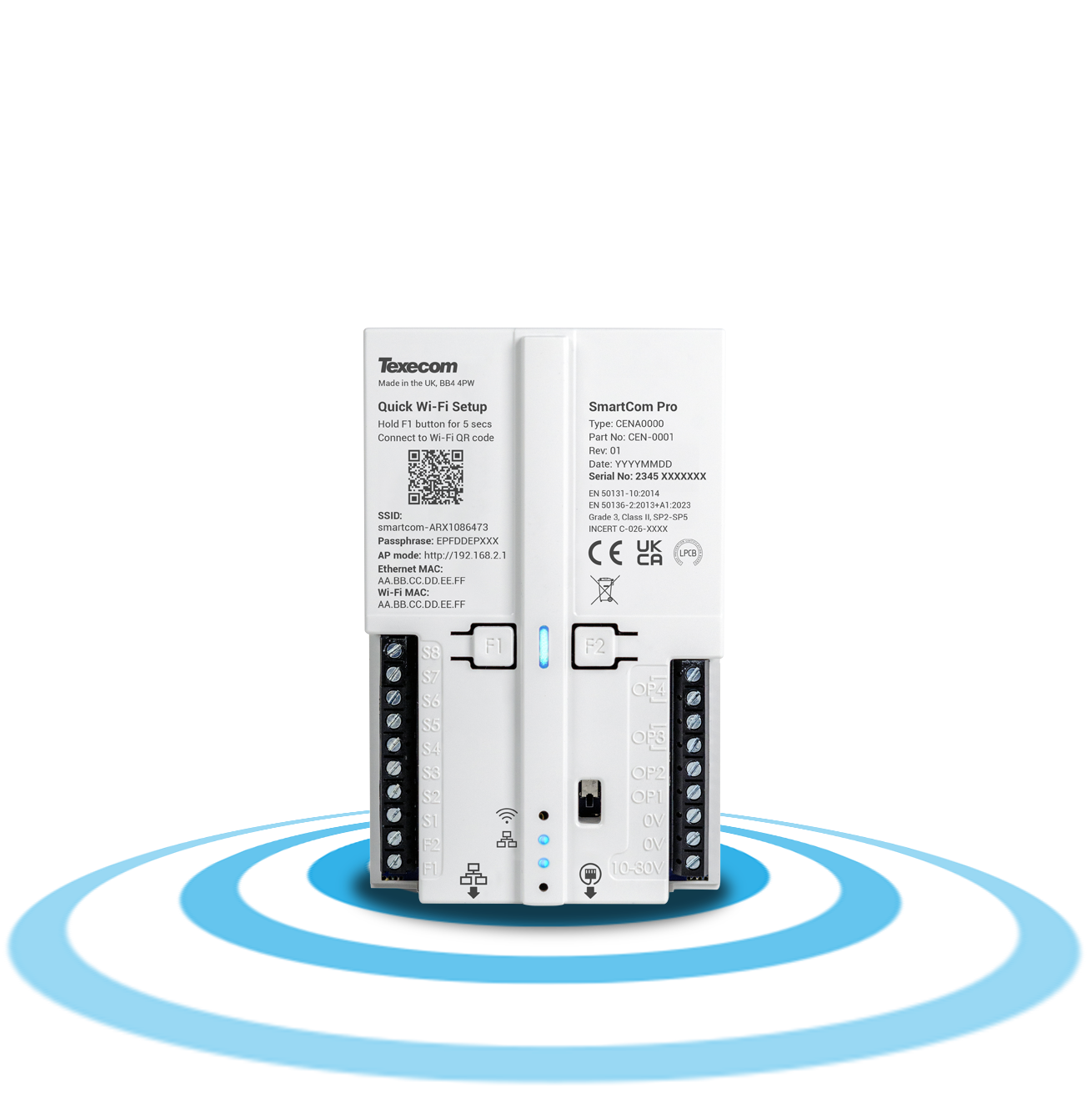

SmartCom Pro
Ethernet / Wi-Fi communicator for Texecom Monitor ARC signalling and Premier Elite digital services.
- Part code
- CEN-0001
- Path
- Single-path communicator (Category SP2)
- Network
- Ethernet or Wi-Fi 802.11 b/g/n 2.4 GHz
- Encryption
- AES-256 alarm messages and polling

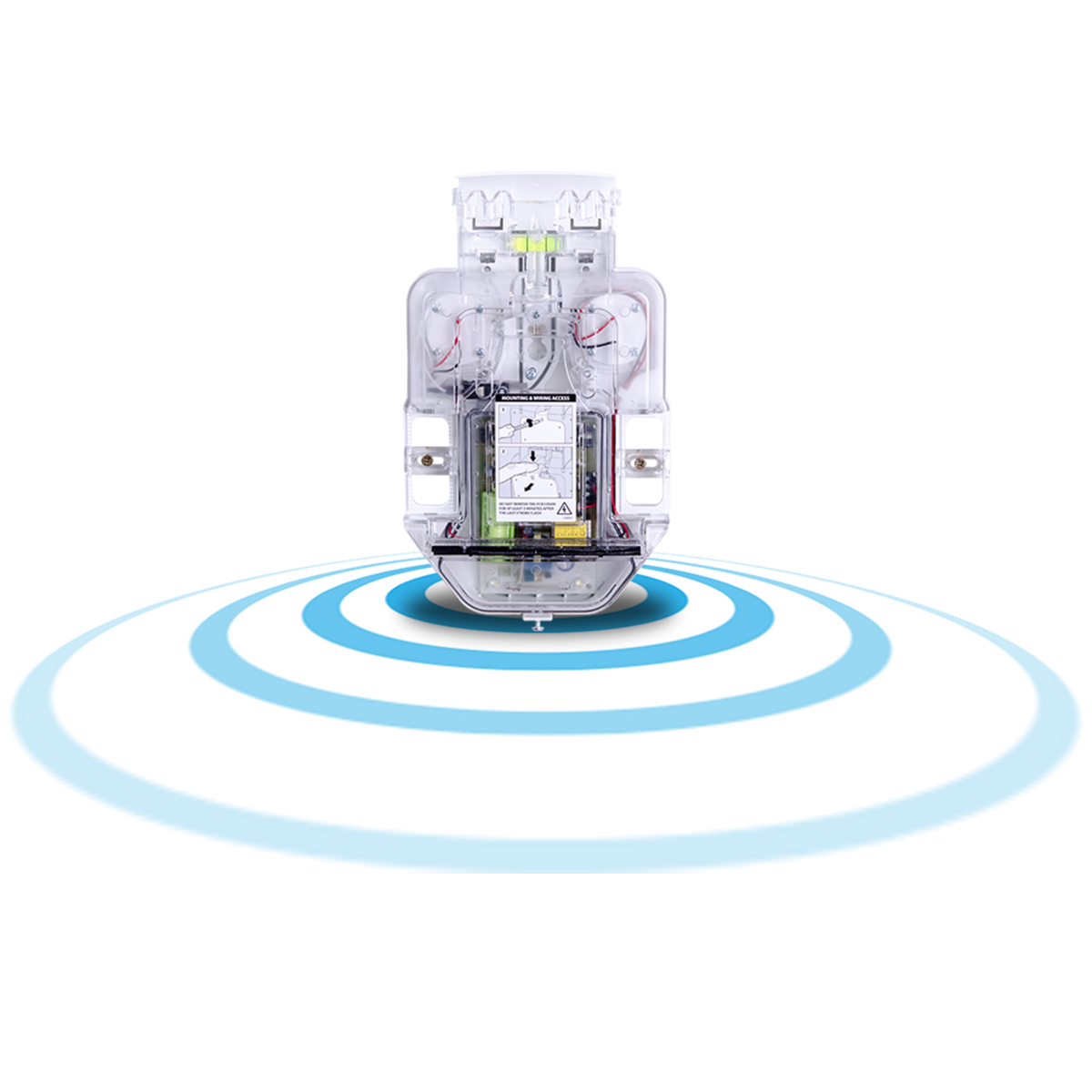

Odyssey X
Grade 3 twin-piezo external sounder, 115 dB(A), with branded cover options.
- Sound output
- 115 dB(A) twin piezo (Grade 3 X / X-B)
- Grade 2 option
- 109 dB(A) X-E / X-BE
- Wireless option
- Odyssey X-W ~105 dB(A), Ricochet
- Tamper
- Wall and cover tamper
Typical wired system packages
Common package ranges. Use the product list above for the exact panel model.
Why Choose Wired Systems?
Maximum Reliability
No wireless interference or signal issues. Hardwired connections ensure consistent, uninterrupted operation.
Tamper Resistant
Physical wiring is extremely difficult to jam or interfere with, providing superior security against sophisticated attacks.
No Battery Maintenance
Sensors are powered through the wiring, eliminating the need for regular battery replacements across your system.
