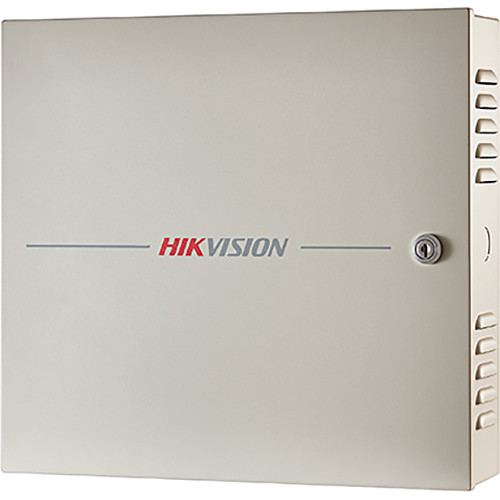

Hikvision DS-K2602 — Specs & Hong Kong Installation
Networked 2-door controller for card, PIN and third-party Wiegand readers.
Best for: Two-door offices / server rooms
Product overview
The Hikvision DS-K2602 is a access controller from the DS-K2600 series, selected by Swan CCTV for professional projects across Hong Kong and Macau. Networked 2-door controller for card, PIN and third-party Wiegand readers. It is best suited for two-door offices / server rooms.
As a control panel, DS-K2602 sits at the centre of an intrusion system: it receives signals from door/window contacts, motion detectors, and wireless sensors, then reports events to keypads, apps, and (where configured) a monitoring centre. Swan CCTV programs partitions, user codes, entry/exit delays, and communicator paths to match how Hong Kong homes and shops are actually used — for example separate arming for a ground-floor shop and upstairs flat.
Typical Hong Kong deployments include compact apartments with metal gates and aluminium windows, village houses needing outdoor beams, and small offices that need silent night-arming with daytime partial protection. We supply genuine Hikvision hardware, complete site survey, neat cabling or wireless placement, and commissioning with your preferred monitoring or self-monitoring setup.
Compared with generic online product listings, this page reflects how Swan CCTV actually deploys DS-K2602 on local sites: we confirm power availability, building management rules, false-alarm risk, and monitoring options before quoting. Request a site survey if you need a tailored bill of materials.
Key features
- Offline operation if the network drops
- Works with Hikvision MinMoe and third-party Wiegand readers
- Managed from iVMS-4200 / HikCentral
- Professional supply and installation by Swan CCTV in Hong Kong
- Configured and tested on-site (not leave-in-box DIY)
- Documentation and user training included with installation packages
Compatibility
- Designed for use within Hikvision DS-K2600 ecosystems and compatible accessories stocked by Swan CCTV.
- Works with wired zone expanders and/or wireless receivers as listed in the technical specifications.
- Supports professional keypads and optional IP/cellular communicators for monitoring-centre reporting.
- Can be combined with door contacts, PIRs, glass-break sensors, and smoke interfaces commonly used in Hong Kong fit-outs.
- Often quoted together with: DS-2CD2043G2-I, DS-2CD2347G2-LU, DS-2CD2387G2-LU, DS-2CD1245(D)-LA.
Manuals, datasheets & resources
Technical specifications
| Doors | 2 |
|---|---|
| Readers | 4 × RS-485 + 4 × Wiegand (W26/W34) |
| Cards | 100,000 (expandable to 200,000) |
| Events | 300,000 (expandable to 600,000) |
| Uplink | TCP/IP + RS-485 (encrypted) |
| Inputs | Door sensor × 2, exit button × 2, alarm × 4, case × 4, tamper |
| Outputs | Door relay × 2, alarm relay × 4 |
| Functions | Anti-passback, multi-card, first-card, super card/password, interlock |
| Power | 12 V DC / 1 A |
| Size | 370 × 345 × 90 mm metal housing |
| Brand | Hikvision |
| Series | DS-K2600 |
| Category | Access Controller |
| Local support | Supply, install, program, and after-sales by Swan CCTV (Hong Kong) |
| Typical use | Two-door offices / server rooms |
Hong Kong / local context
Hong Kong properties often combine aluminium windows, metal gates, compact rooms, and mixed residential-commercial use. Swan CCTV selects DS-K2602 when its zone capacity, detection pattern, or video performance matches those constraints.
For village houses and duplexes, partitioned arming helps protect ground-floor shops overnight while living areas stay flexible.
In multi-tenant buildings, we coordinate with management offices on cable trays, riser access, and approved working hours.
Ask Swan CCTV for a Hong Kong site survey if you are comparing DS-K2602 with other Hikvision models for your layout.
Installation notes
- Swan CCTV provides supply, mounting, programming, and testing for DS-K2602 as part of a complete Hikvision system.
- A short site survey confirms cable routes, Wi-Fi/4G signal, power points, and building management constraints before installation day.
- Panel location is usually a hidden cupboard or meter area with ventilation and 220V power for the transformer or PSU.
- We program entry/exit delays for typical HK metal gates and lobby doors, and train users on arming/disarming and emergency codes.
- Optional communicator setup includes testing alarm signals to the monitoring centre or your phone app.
- Warranty and manufacturer support terms follow the official Hikvision policy; Swan CCTV provides local labour warranty on our workmanship as stated in your quotation.
All Hikvision products
View models & specsCompare related products from the catalog. Also see our brand guides and CCTV Systems.
Hikvision · DS-K2600

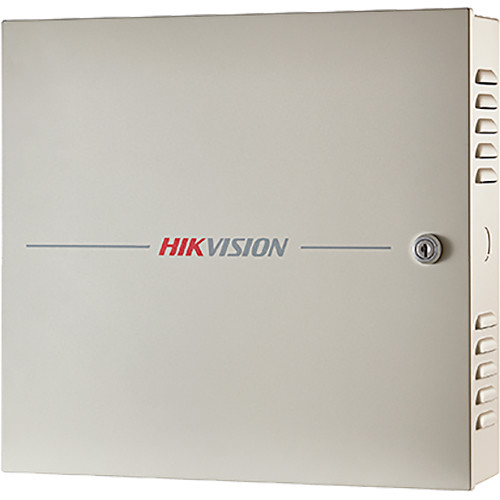

DS-K2604
Four-door DS-K2600 controller for multi-door offices and back-of-house.
View specs
Hikvision · AcuSense

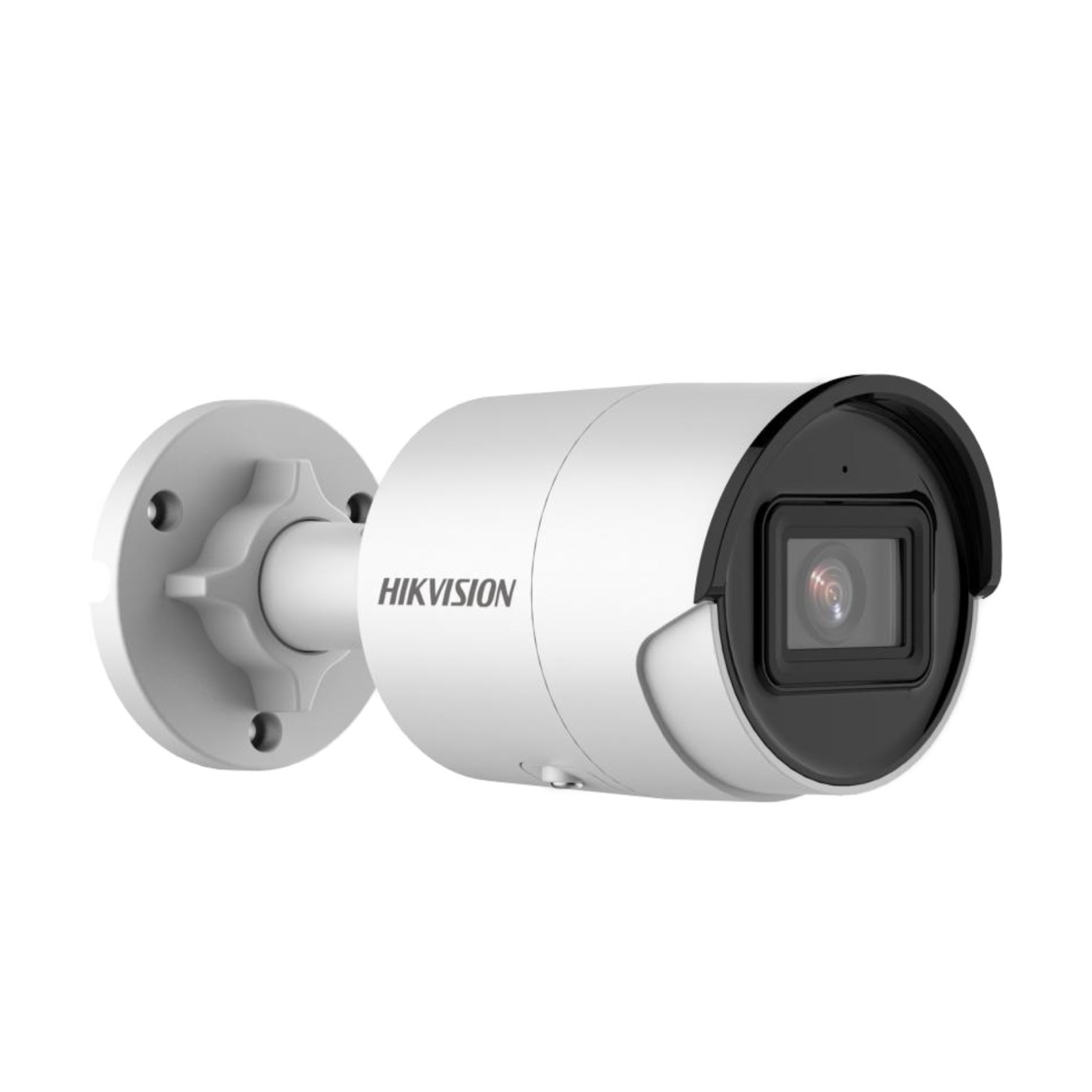

DS-2CD2043G2-I
4 MP AcuSense bullet with human/vehicle classification.
View specs
Hikvision · ColorVu
DS-2CD2347G2-LU
4 MP ColorVu turret for full-color imaging in low light.
View specs
Hikvision · ColorVu

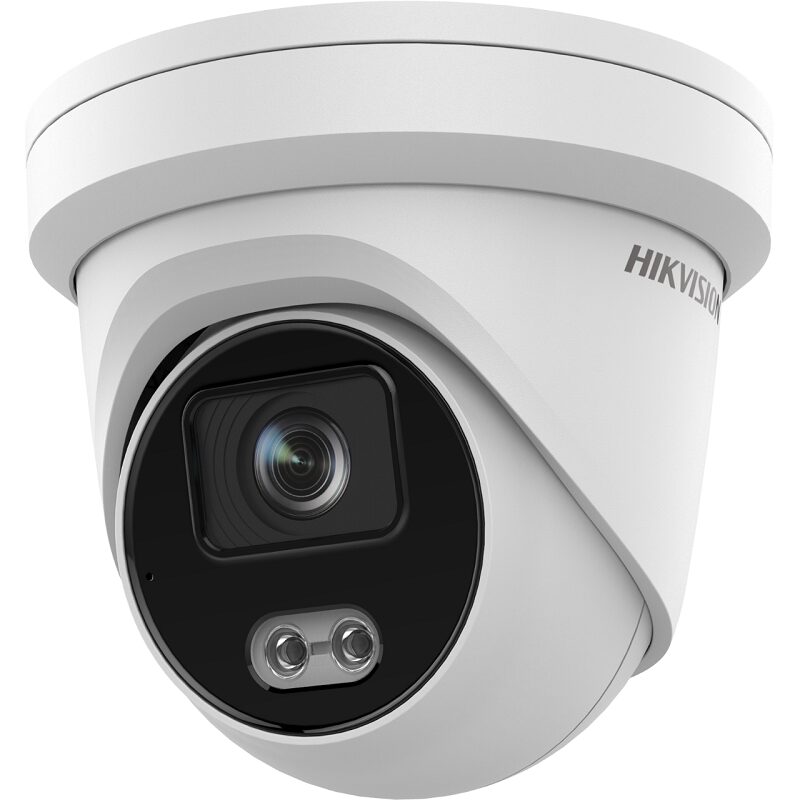

DS-2CD2387G2-LU
8 MP ColorVu turret for higher detail identification.
View specs
Hikvision · Value / Dual-light
DS-2CD1245(D)-LA
Official Hikvision 4 MP dual-light full-color bullet — SmartIR, IR + white-light to 30 m, built-in mic, IP67.
View specs
Hikvision · Ultra Series / ColorVu SmartIP
DS-2CD3347G2-LS(U)
4 MP ColorVu Ultra Series turret — F1.0 lens, 130 dB WDR, white light to 40 m, built-in mic (-U), perimeter AI.
View specs
Hikvision · Smart / Full-color
DS-2CD3T86FWDV3-LS
Official Hikvision 8 MP (4K) white-light full-color bullet — 1/1.8″ CMOS, dual IR + white-light fill, built-in mic, Smart line-crossing / intrusion.
View specs
Hikvision · DarkFighter
DS-2CD2685G0-IZS (Black)
8 MP (4K) DarkFighter motorized bullet — 2.8–12 mm, 50 m IR, 120 dB WDR, IP66 / IK10. Black housing on the Hong Kong listing.
View specs
Hikvision · AcuSense

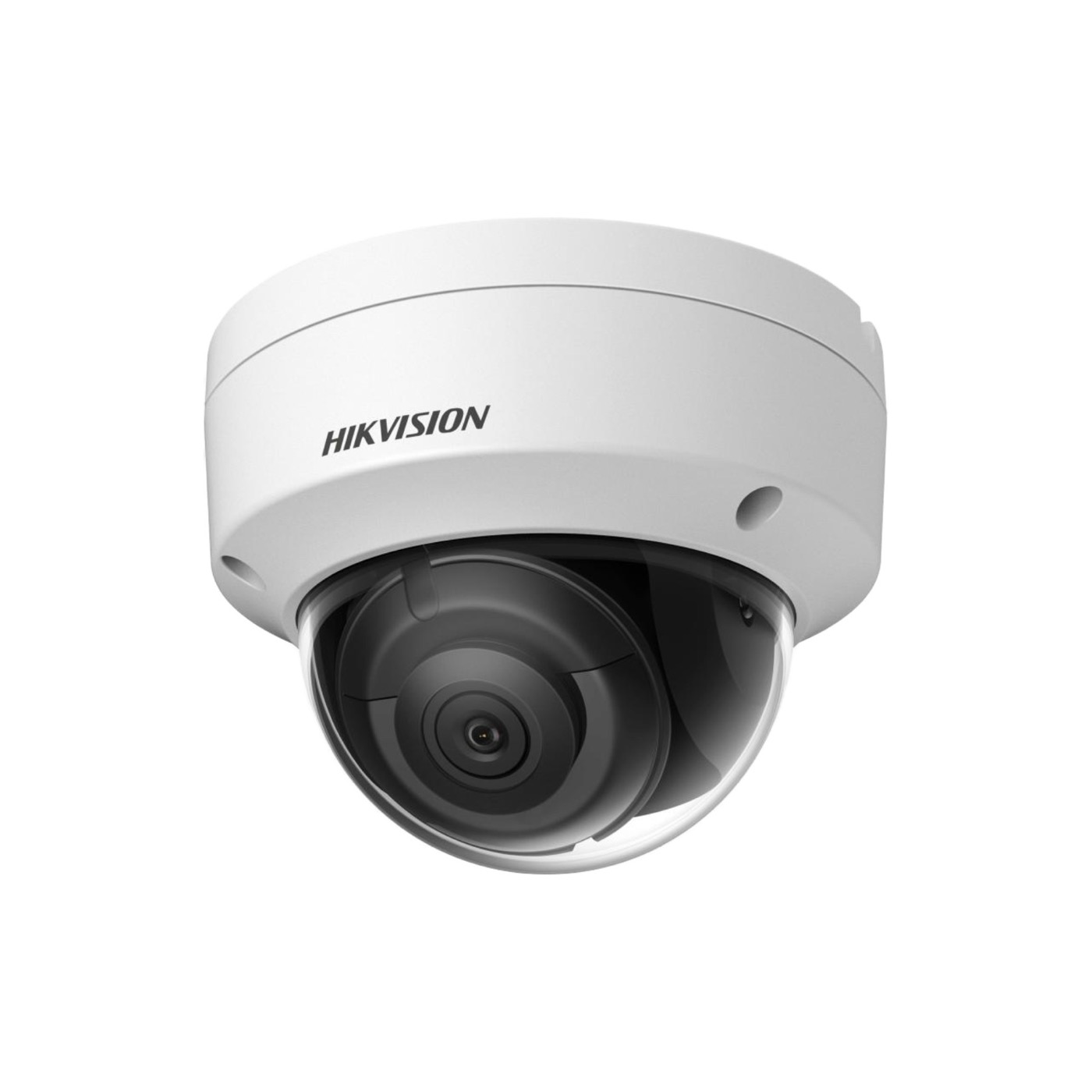

DS-2CD2143G2-I
4 MP vandal-resistant dome with AcuSense analytics.
View specs
Hikvision · PTZ
DS-2DE4425IW-DE
4 MP PTZ with optical zoom for wide-area tracking.
View specs
Hikvision · NXI NVR

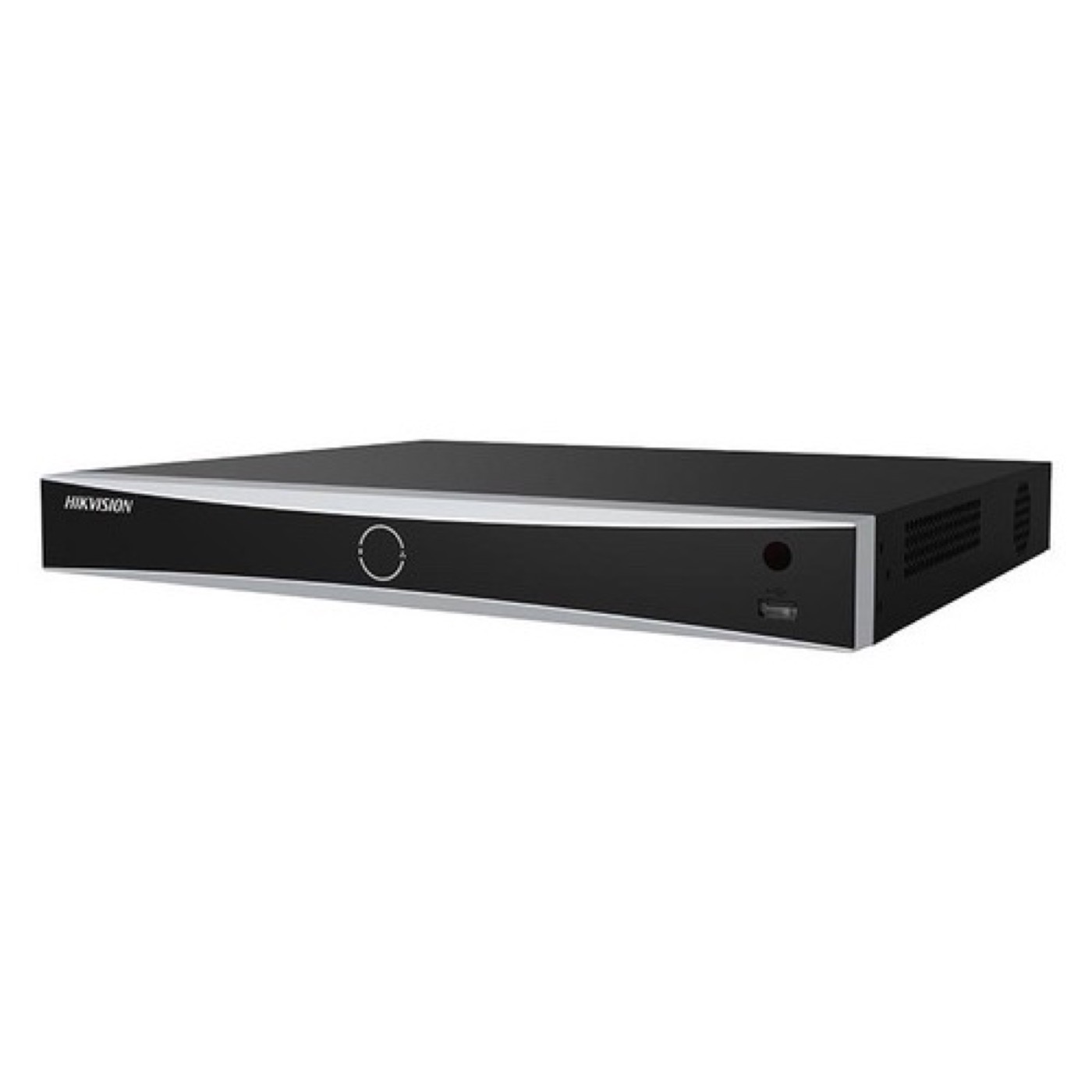

DS-7608NXI-I2/8P
8-channel PoE NVR with AcuSense-friendly playback features.
View specs
Hikvision · NXI NVR
DS-7616NXI-I2/16P
16-channel PoE NVR for mid-size CCTV systems.
View specs
Hikvision · NXI NVR
DS-7732NXI-I4/16P
32-channel NVR class for larger camera counts and longer retention.
View specs
Hikvision · MinMoe

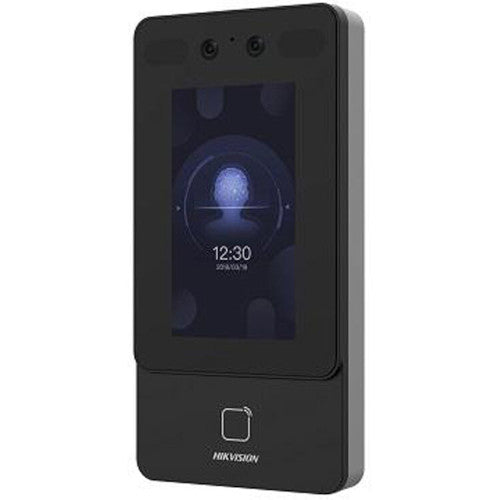

DS-K1T342DX
4.3" MinMoe face + Mifare card terminal for shop and office doors.
View specs
Hikvision · Video Intercom

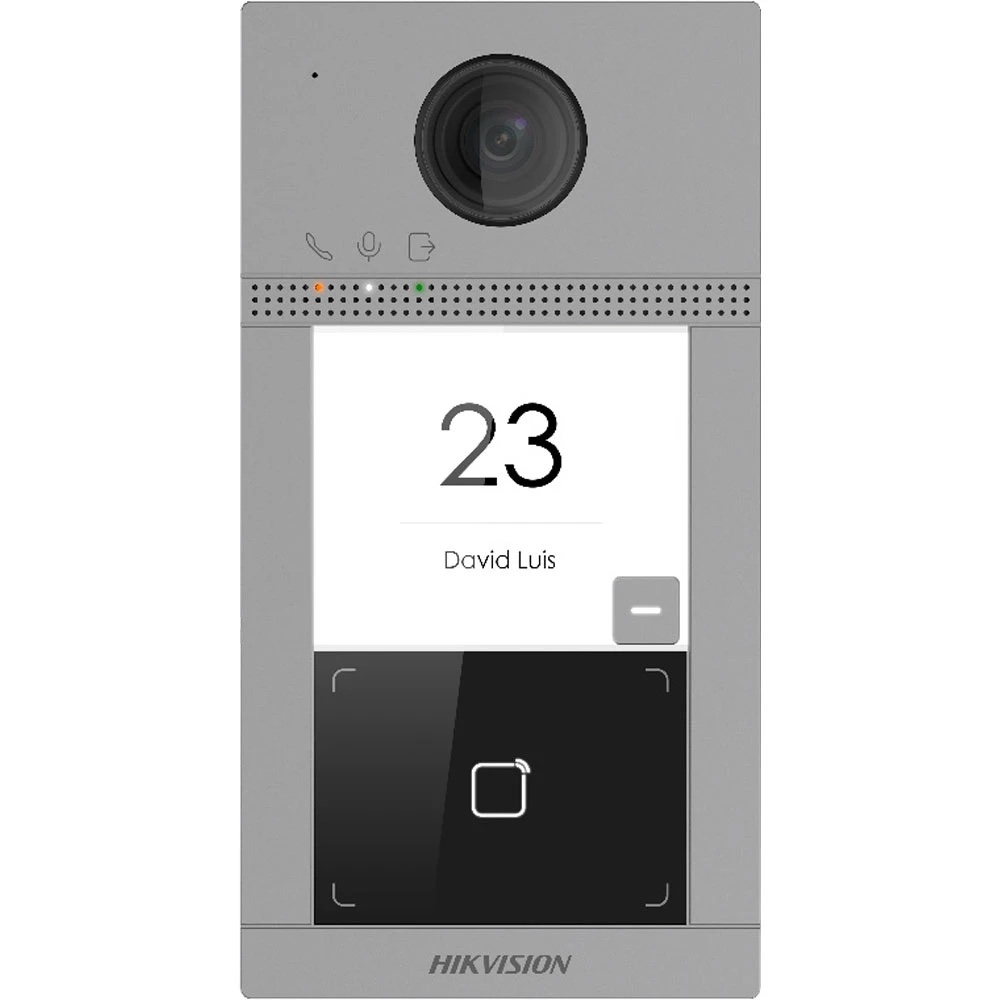

DS-KV8113-WME1
